Circular knitting machine debugging technical standards using a dial gauge or feeler inspection (1) upper needle dial from Pingdu: standard is less than or equal to 0.05 mm (2) on the needle plate from roundness: standard is less than or equal to 0.05 mm (3) under the needle tube roundness: standard is less than or equal to 0.05 mm (4) under the needle tube from Pingdu: standard is less than or equal to 0.05 (5) pin disc and a lower needle cylinder with level: standard is less than or equal to 0.05 mm (6) on needle plate, needle tube Tongyuan degree: standard is less than or equal to 0.05 mm (7) upper wall triangle and the needle cylinder gap 0.15mm-0.20mm (8) circle triangle and the needle cylinder clearance 0.15mm-0.20mm

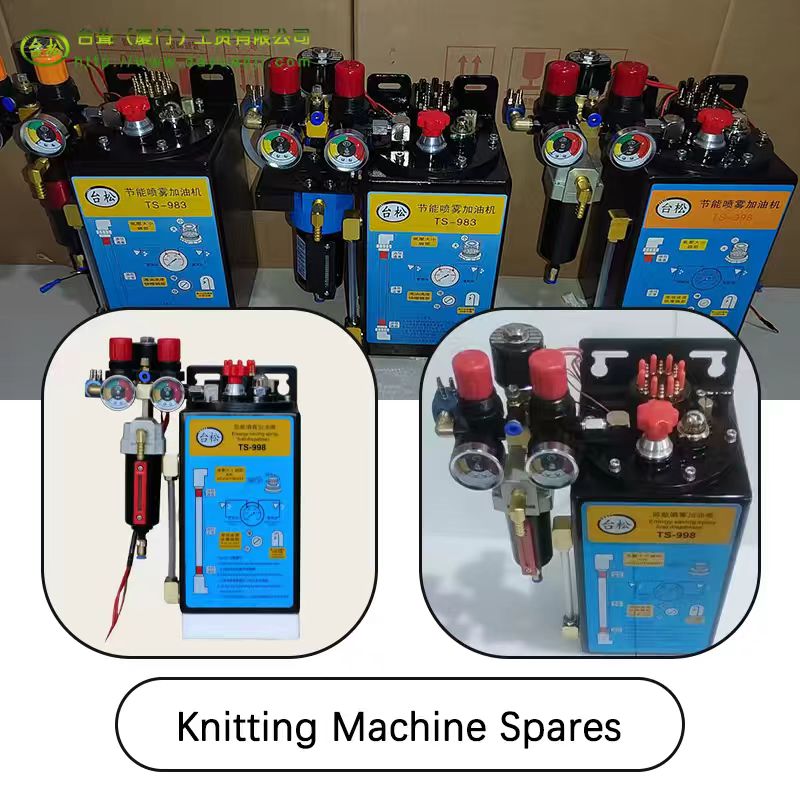

Quality function description: A: solenoid valve, pressure regulating valve, filter cup, pressure gauge......... And other major parts, are Taiwan import, directly improve the product operation function. Two: the main oil can distinguish between two kinds: oil capacity of 2.75 liters (five days operation), After installation, the adjustment should be done: 1: air compressor pressure should be kept 4KG. 2: pressure gauge adjustment 1.5KG. 3: oil amount of oil is kept 60 drops / minute. 4: view of the injected fuel to reach the standard oil level. 5: big drums size: length 275mm* width 152mm* high 275mm
Loop length monitor for knitting machine
